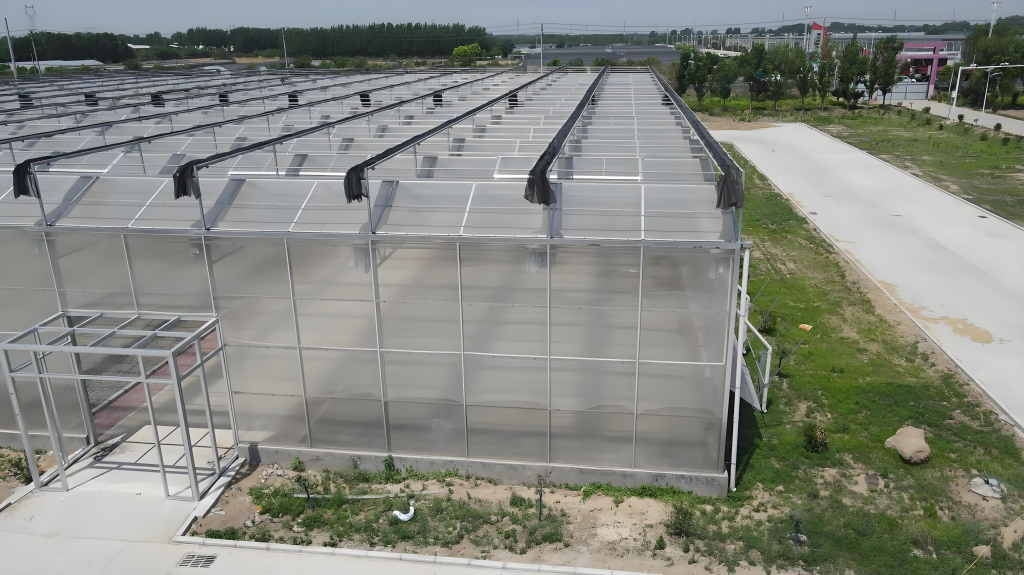

Sunlight Panel Greenhouse

Durable and Energy-Efficient Commercial Growing Greenhouse

Material: Galvanized Steel Sheet + Sunlight Panels
Size: Customizable
– High wind resistance ≥ 100 km/h
– Snow load capacity up to 0.5–1.0 kN/m²
– Compatible with automation upgrades

Application Scenarios

This greenhouse is widely used across various agricultural and horticultural fields, including:
– Commercial vegetable cultivation (tomatoes, cucumbers, peppers)
– Cut flower and ornamental plant production
– Seedling propagation and nursery use
– Agricultural demonstration centers
– Climate-controlled cultivation in cold and windy regions
-Suitable for greenhouses in snowy or mountainous areas
CONTACT

PARAMETER

Covering
Material		 Hollow Polycarbonate Panels (4mm/6mm/8mm)
Structural
Material		 Hot-dip Galvanized Steel
Span Width 8m / 9.6m / 10.8m / 12m
Bay Length 4m / 5m
Gutter Height 3m / 4m / 4.5m (customizable)
Ridge Height 4.8m – 6.5m
Snow Load 0.5–1.0 kN/m²
Wind Load ≥ 100 km/h
Light
Transmission		 80–85%
Lifespan PC Panels: Over 10 years; Structure: 15–20
years



Key Features and Competitive Advantages

① Reinforced Steel Structure
● High-strength galvanized steel frame with anti-corrosion coating
● Suitable for snowy and windy conditions
● Customizable tube sizes
● Steel lifespan exceeds 20 years

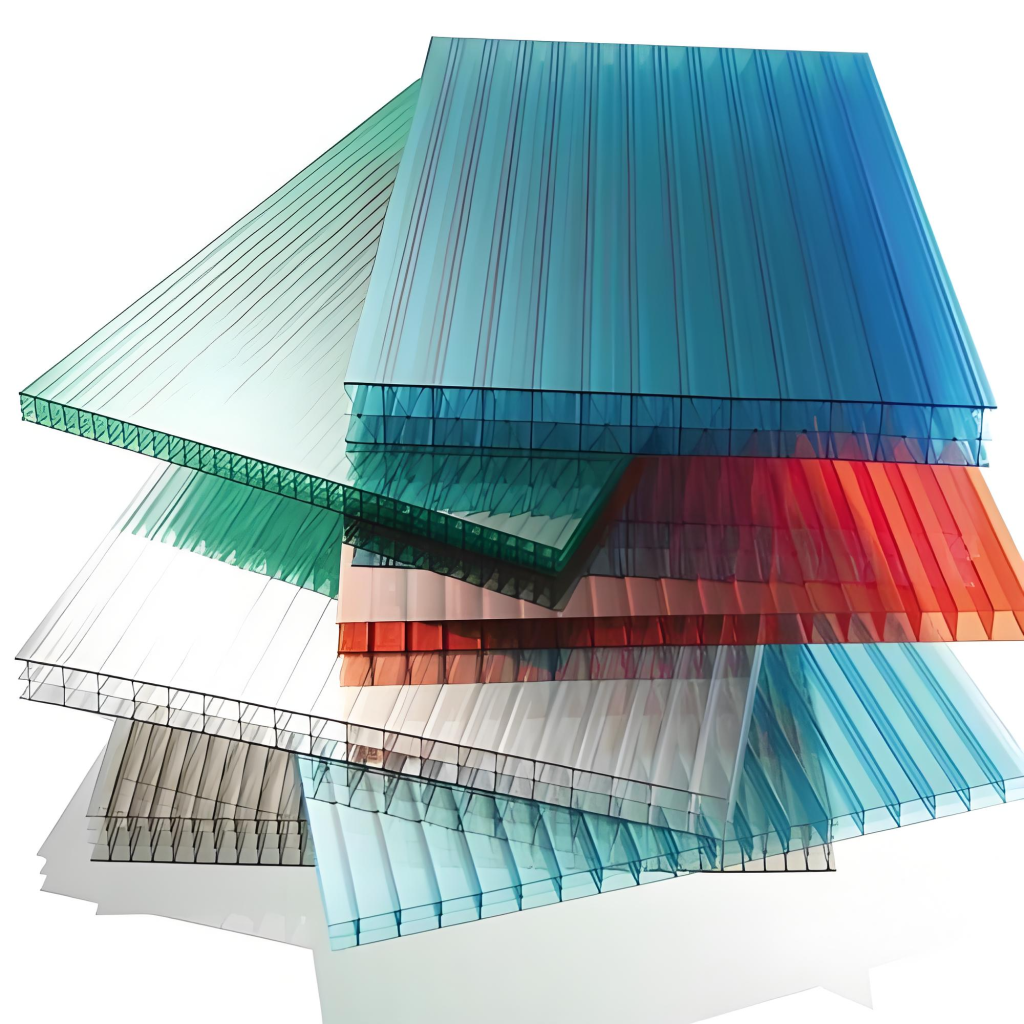

② Sunlight Panels
● Double-wall or triple-wall polycarbonate sheets
● UV-resistant, flame-retardant, and hail-proof
● Excellent thermal insulation (0.3–0.5 W/m²·K)
● Optional diffused panels to prevent leaf burn





③ Intelligent Environmental Control (Optional)
● Automatic temperature and humidity regulation
● Integrated system with fans, cooling pads, and vents
● Smart climate control via mobile app or touchscreen controller

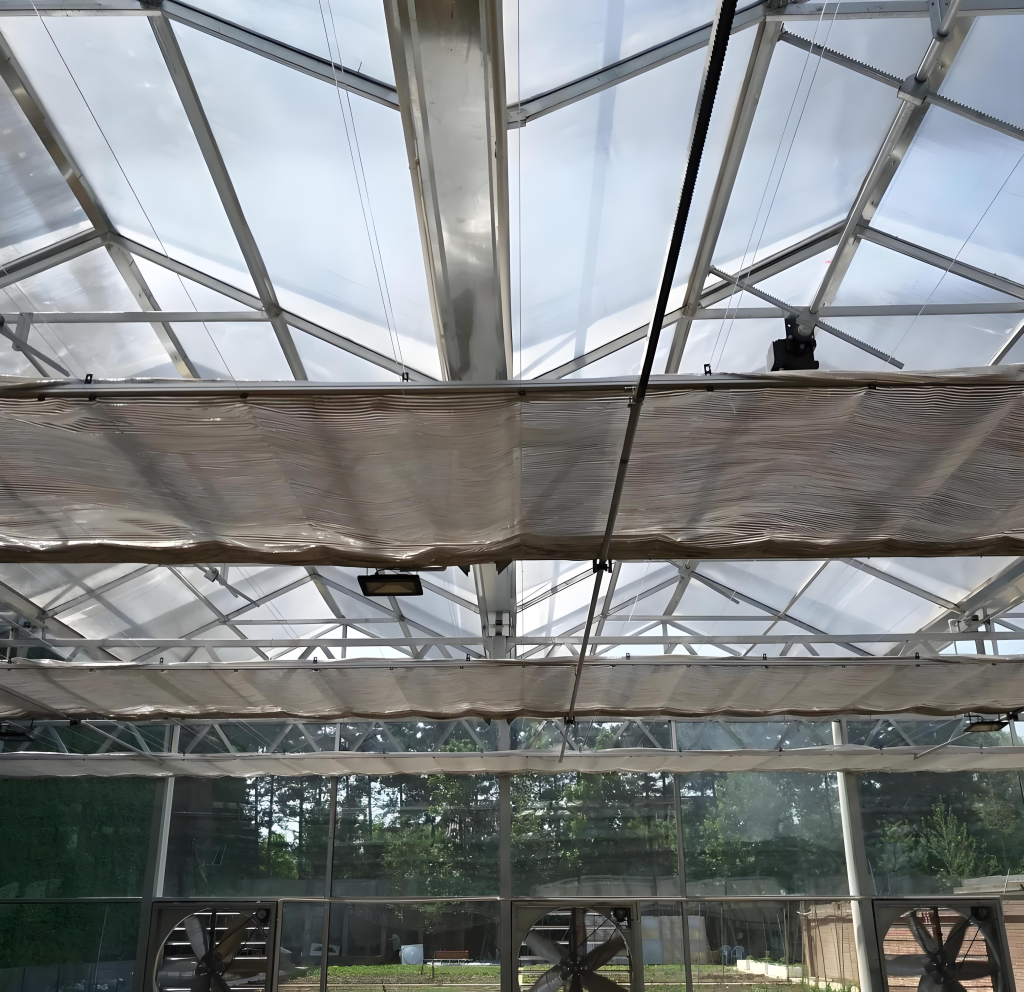

④ Internal Shading System (Optional)
● High-efficiency shading net with 50%–85% light blockage
● Reduces indoor temperature by 8–12°C
● Available in motorized or manual operation

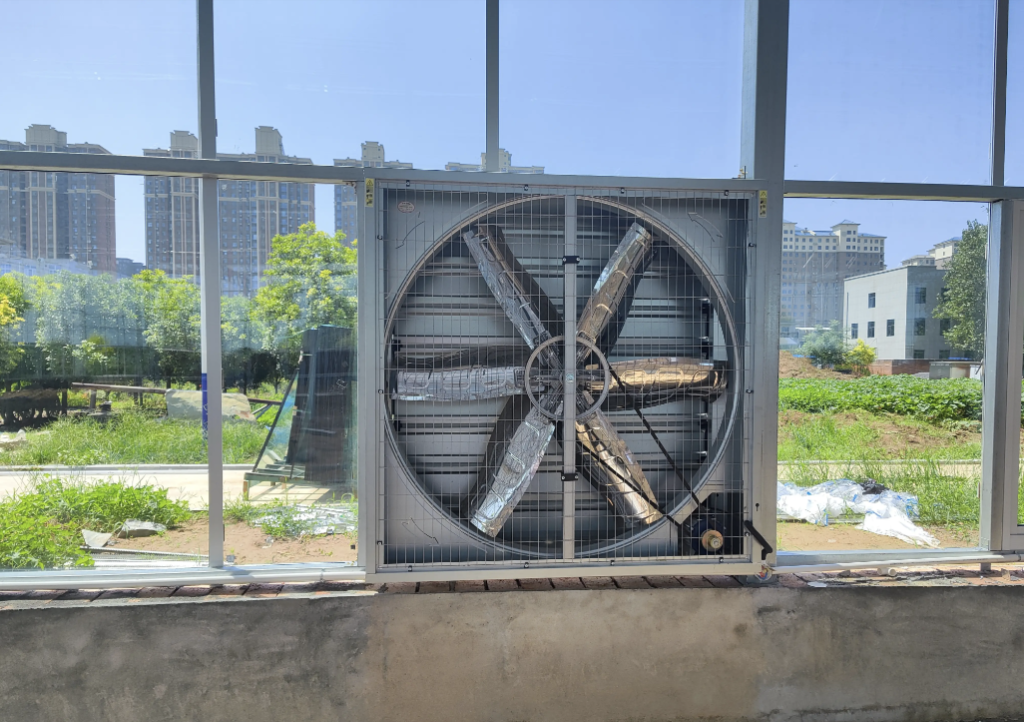

⑤ Cooling and Ventilation System
● Roof vents, side vents, and exhaust fans
● Cooling pad system reduces temperature through evaporative cooling
● Ventilation capacity adjustable to greenhouse size

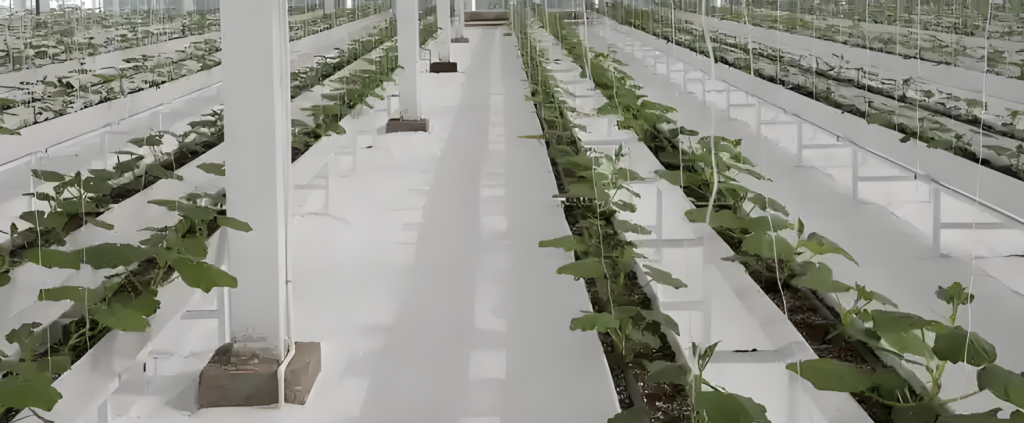

⑥ Cultivation System — Efficient, Flexible, and Compatible
● Supports various growing media: hydroponics, NFT channels, coco coir, or soil
● Flexible layouts suitable for leafy greens, herbs, strawberries, and fruiting vegetables

Addressing Growers’ Real-World Challenges

Challenge How This
Greenhouse Solves It
Winter
snowstorms or windstorms		 Reinforced polycarbonate panels + heavy-duty frame
Uneven lighting
and overheating		 Diffused
sunlight panels + heavy-duty frame
High heating
costs		 Excellent
insulation reduces heat consumption
Difficulty with
year-round cultivation		 Stable
microclimate ensures four-season production
Pest and
disease pressure		 Sealed
structure + optional insect screens

Packaging and Shipping

● Frame and sunlight panels packaged separately, with protective foam and film
● Global delivery available via sea or rail freight
● Installation manual and online video support provided

Frequently Asked Questions

Q1: How long does the polycarbonate panel last?
A1: The polycarbonate panels have a lifespan of 10–15 years, feature UV protection, and are highly durable and weather-resistant.

Q2: Can this greenhouse be used in snowy areas?
A2: Yes. It is designed to withstand snow loads of 0.3–0.5 kN/m². We can customize it to handle higher snow loads as needed.

Q3: Is this suitable for hydroponic farming?
A3: Absolutely. This greenhouse works well with hydroponic systems such as drip irrigation.

Q4: Can I choose glass instead of sunlight panels?
A4: Yes, but we recommend polycarbonate panels for their superior insulation and impact resistance.

Q5: Do you offer installation services?
A5: We provide structural drawings, online guidance, and video support. On-site installation services are also available upon request.
