Size: Customizable
– Water-Efficient: Soilless cultivation uses a closed-loop nutrient solution system, achieving over 90% higher water use efficiency compared to traditional farming—ideal for water-scarce areas.
– Soil-Free Flexibility: No reliance on natural soil; suitable for urban rooftops, wastelands, greenhouses, and various environments, maximizing space and resource utilization.
– Reduced Pests and Chemicals: Absence of soil and external contaminants greatly lowers pest pressure, significantly reducing pesticide use while enhancing crop safety and quality.
– Year-Round Stable Production: When paired with intelligent greenhouse systems, automatic control of temperature, humidity, and light enables continuous cultivation throughout all seasons, boosting economic returns.
Urban agriculture and vertical farming
Areas with extreme climates or poor soil quality
Cultivation of high-value crops
Research and educational purposes
Government or development agency-supported projects
Item | Details | ||||||
Name | NFT Hydroponic Pipe System | ||||||
Pipe Dimensions |
100×50mm / 100×80mm / 120×100mm (customizable) |
||||||
Material | Food-grade PVC / UPVC pipes | ||||||
Pipe Length | 1m to 3m (commonly 2m) | ||||||
Hole Spacing | 150mm / 200mm | ||||||
Number of Holes |
8 to 30 per pipe, depending on length and design |
||||||
Support Material |
Galvanized steel / stainless steel / PVC | ||||||
Components | Circulation pump, nutrient tank, connecting pipes, planting baskets, supports |
||||||
Pump Power | 25–40W (depends on system size) | ||||||
Item | Details | ||||||
Name | Coco Coir Grow Tray System | ||||||
Tray Material | UV-stabilized plastic trays / galvanized steel trays |
||||||
Tray Width | 20cm / 25cm / 30cm | ||||||
Tray Height | 10cm / 15cm / 20cm | ||||||
Tray Length | 1m / 1.5m / 2m / 2.5m | ||||||
Tray Thickness | 0.6mm / 0.8mm / 1.0mm | ||||||
Growing Media Supported |
Coco coir, rock wool, perlite, volcanic stone, etc. |
||||||
Drip Irrigation System |
Automated drip system with timer control | ||||||
Plant Spacing | 20cm – 35cm | ||||||
Supported Crop Types |
Tomatoes, peppers, strawberries, cucumbers, etc. |
||||||
Item | Details | ||||||
Name | Deep Water Culture (DWC) System | ||||||
Grow Box Dimensions |
60×40×20 cm / 80×60×25 cm (customizable) | ||||||
Number of Grow Holes |
6 holes / 8 holes / 12 holes, etc. | ||||||
Material | Food-grade PP plastic | ||||||
Oxygen Supply System |
Air pump + aeration stone | ||||||
Nutrient Solution Depth |
15–25 cm | ||||||
Suitable Crops | Lettuce, herbs, spinach, and other fast-growing leafy vegetables |
||||||
Item | Details | ||||||

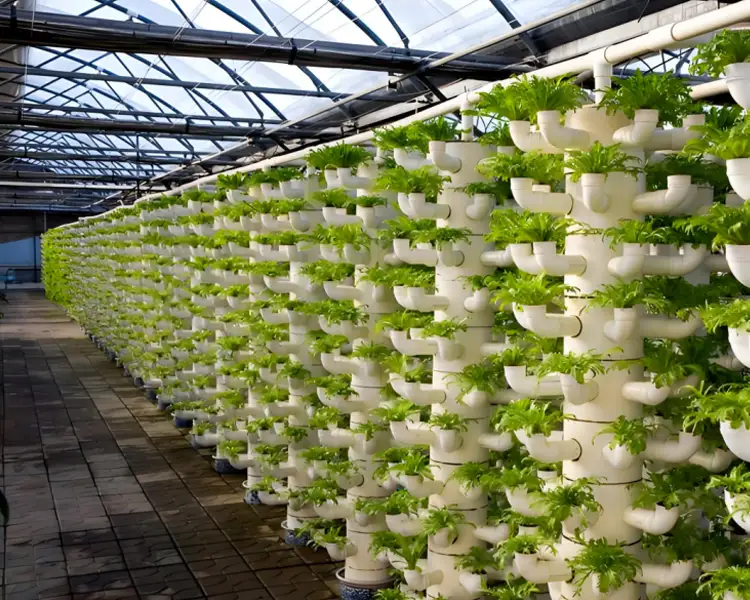

Name | Vertical Tower Hydroponic System | ||||||
Tower Height | 1.2m / 1.5m / 1.8m | ||||||
Number of Grow Holes |
36 / 54 / 72 (depending on tower layers) | ||||||
Tower Material | Food-grade PP plastic / ABS | ||||||
Support Frame | Base water tank with built-in circulation pump | ||||||
Suitable Spaces |
Ideal for home balconies, rooftops, labs, and urban farms | ||||||
Item | Details | ||||||
Name | Control and Irrigation System (Compatible with All Hydroponic Systems) |
||||||
Circulation Pump Power |
25W / 40W / 60W (depending on system size) | ||||||
Nutrient Tank Capacity |
50L / 100L / 200L / 500L options | ||||||
pH/EC Sensors | Optional automatic monitoring and adjustment system |
||||||
Drippers/Sprayers | 2L/h, 4L/h, 8L/h (adjustable) | ||||||
Control Modes | Manual / Timer / Smart Controller (App remote control) |
① Efficient Water Use (Water Saving)
● Soilless systems (such as hydroponics and coco coir cultivation) utilize recirculating irrigation and precise drip irrigation to minimize water waste.
● Compared to traditional soil farming, they save approximately 70%–90% of irrigation water, making them especially suitable for arid and low-rainfall regions.
② Increased Yield and Quality
● Precise nutrient solution formulation ensures crops receive a stable and balanced supply of nutrients.
● Results in higher yields, better fruit uniformity, reduced pest and disease incidence, and improved taste and appearance.
③ Reduced Pest and Disease Pressure, Lower Pesticide Use
● Soilless cultivation eliminates soil-borne diseases, making the system easier to manage and control pathogens.
● Healthier crops with lower pesticide residues, better meeting market demands for food safety.
④ Strong Adaptability, Enabling Urban Agriculture
● Does not require fertile soil; suitable for installation in greenhouses, balconies, urban rooftops, wastelands, and other environments.
● When integrated with smart systems, enables fully automated management, representing a core direction for the future of smart agriculture.
Challenge | How This System Addresses It | ||||||
Soil contamination / limited land |
Soil-free cultivation with flexible footprint |
||||||
Pesticide residues / pest pressure |
Sealed greenhouse + soilless media reduce pesticide use |
||||||
Water scarcity | Nutrient solution recirculation saves over 90% water |
||||||
Seasonal limitations |
Smart greenhouse enables year-round cultivation |
||||||
Labor shortage | Supports semi-automated or fully automated management |
||||||
Diverse market demands |
Suitable for growing vegetables, fruits, herbs, and ornamentals |
● Modular Packaging: All system components (such as grow trays, hydroponic pipes, water tanks, and supports) are packed separately for easy handling and installation.
● Protective Materials: Includes foam padding, stretch film, or cartons to prevent damage and abrasion during transit.
● Clear Labeling: Each box is labeled in English and French with assembly diagrams for easy identification and use.
● Customized Packaging: Eco-friendly packaging options available to meet customs requirements in different countries.
Q1: Is installation complicated? Do customers need specialized skills?
A1: Our system features a modular design with installation manuals and video tutorials, allowing general technicians to complete assembly. Remote guidance or on-site services are also available.
Q2: Which countries or regions is this system suitable for?
A2: Particularly suitable for:
Middle East: Water-scarce regions relying on vegetable imports, such as Saudi Arabia, UAE, Qatar.
Central Asia: Poor soil conditions, ideal for smart greenhouse projects, such as Uzbekistan, Kazakhstan.
Some African countries: Weak agricultural infrastructure with government support for modern farming technologies, such as Morocco, Nigeria, Egypt.
Europe and America: High food safety standards and strong investment in green farming, such as the Netherlands, France, USA, Canada.
Southeast Asia: Suitable for urban agriculture or export-oriented horticulture, such as Thailand, Vietnam, Malaysia.
Q3: Are nutrient solutions provided?
A3: Upon request, we can recommend suitable nutrient formulas or supply them as a package (adjusted according to export regulations).
Q4: Can the system be integrated with smart control systems?
A4: Yes. Optional add-ons include automatic drip irrigation, EC/pH monitoring, temperature and humidity controllers to enable smart cultivation management.
Q5: Can sizes and system layouts be customized?
A5: Customization is supported. Whether it’s NFT hydroponics, coco coir cultivation, or vertical tower systems, we can design personalized solutions based on greenhouse size and crop type.
