Material: hot-dip galvanized steel or galvanized steel strip
Dimensions: Customizable
Durable and easy-to-install tunnel greenhouse designed for small farms, nurseries, and home growers.
No concrete foundation required
UV-resistant PE film with a 3-5 year lifespan
Flexible width and height to suit various crops
High wind resistance — ideal for coastal or open-field locations

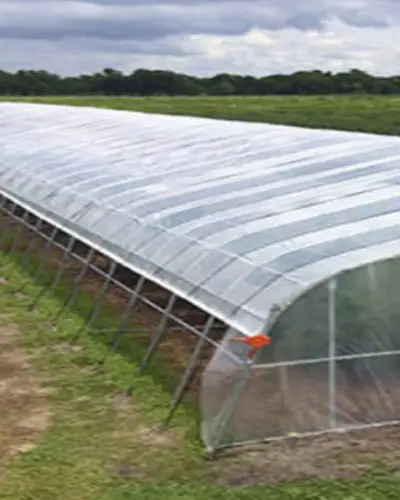

This ground-inserted arched tunnel greenhouse is the perfect solution for small to medium-sized growers. It’s widely used in tropical, arid, temperate gardens, and urban backyards. Whether you’re a gardening enthusiast or a commercial grower, this greenhouse ensures optimal growing conditions year-round. Its versatile applications include:
Suitable for tomatoes, cucumbers, lettuce, herbs, flowers, seedlings, and more
Popular among cooperatives, individual growers, and greenhouse contractors
Backyard vegetable gardening
Nursery propagation
Small-scale commercial farming
Adapted for tropical, arid, and temperate climates
| Item | Details | ||||||
| Greenhouse Type | Ground-inserted support arched tunnel / hoop house |
||||||
| Frame Material | Hot-dip galvanized steel (rust-resistant) | ||||||
| Tube Shape & Size |
Round or oval – Ø25 / Ø32 mm / customizable | ||||||
| Tube Thickness | 1.5 / 1.8 / 2.0 mm (customizable) | ||||||
| Film Cover | UV-resistant PE film, 150 / 200 microns | ||||||
| Wind Resistance | ≥90 km/h | ||||||
| Snow Load Capacity |
≥30 kg/m² | ||||||

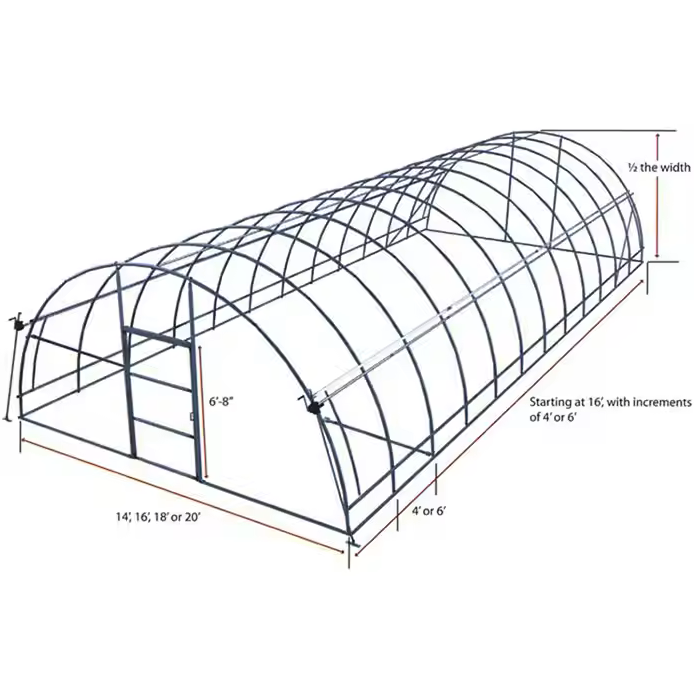

| Width Options | 3 m / 4 m / 6 m / 8 m / customizable | ||||||
| Side Height | 1.5–1.8 m (customizable) | ||||||
| Roof Height | 3.5 m (customizable) | ||||||
| Length | 30 / 50 m or customizable | ||||||
| Structure Lifespan |
Over 15 years | ||||||
| Film Lifespan | 3 to 5 years | ||||||

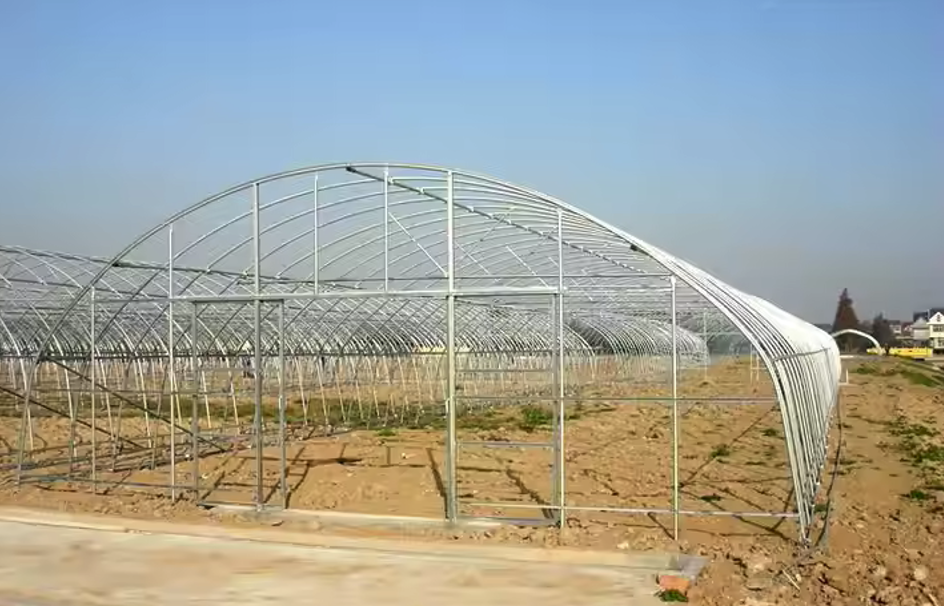

① Heavy-duty hot-dip galvanized steel frame
● Rust-resistant for over 15 years
● Corrosion-resistant in high humidity and coastal areas
● Strong wind resistance: ≥90 km/h
● Tube wall thickness: 1.5 / 1.8 / 2 mm, customizable

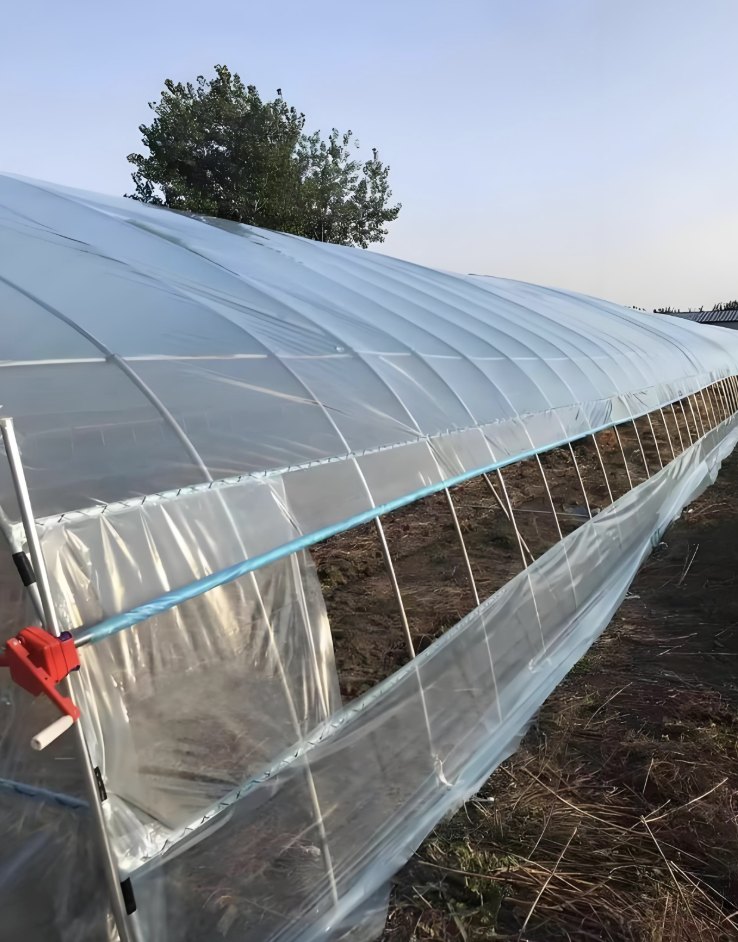

② Manual or Gear-Driven Side Ventilation System
● Compatible with 40/60 mesh insect netting
● Manual or electric roll-up systems available
● Ventilation height: up to 1.5m on both sides

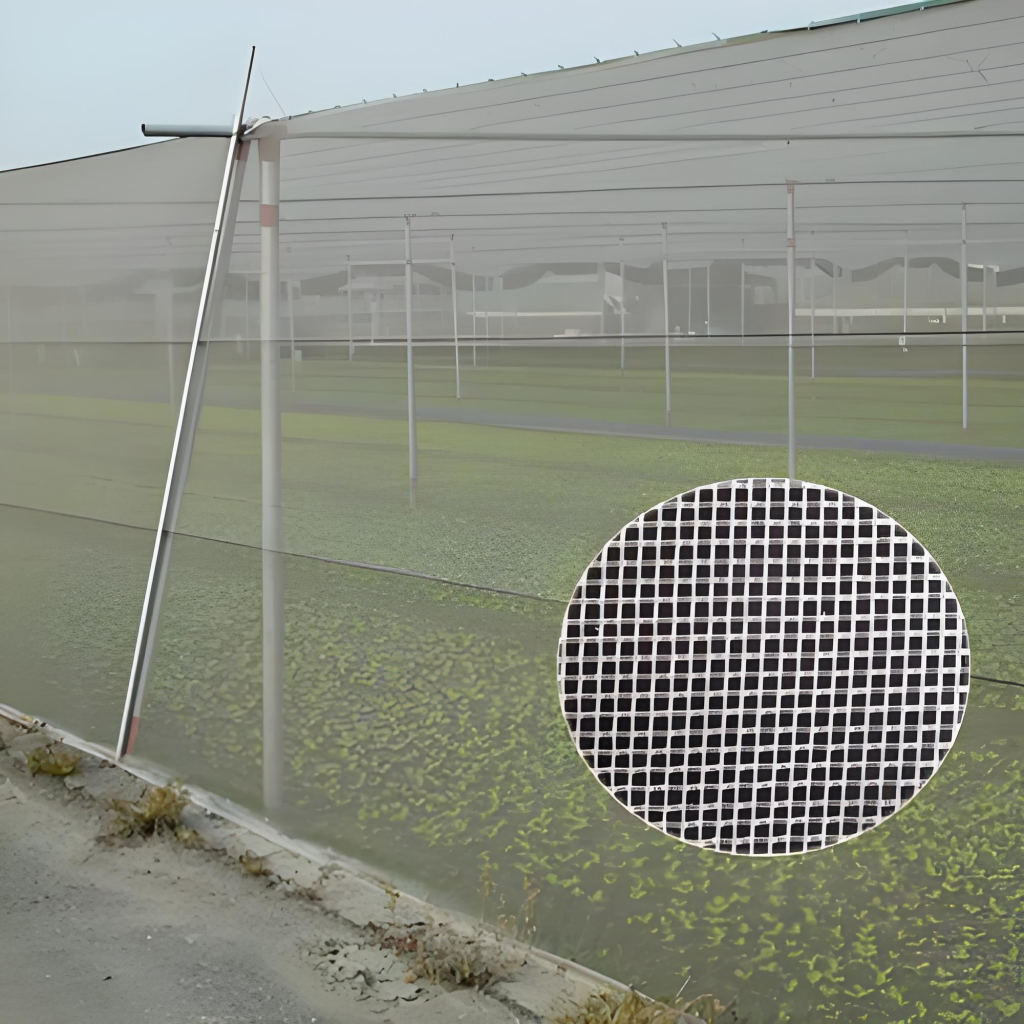

③ High-Density Insect Netting (Optional)
● Protects against whiteflies, aphids, thrips, leafminers, and red spider mites
● Mesh sizes: 40 / 50 / 60, UV-resistant
● Maintains airflow while minimizing pest risks

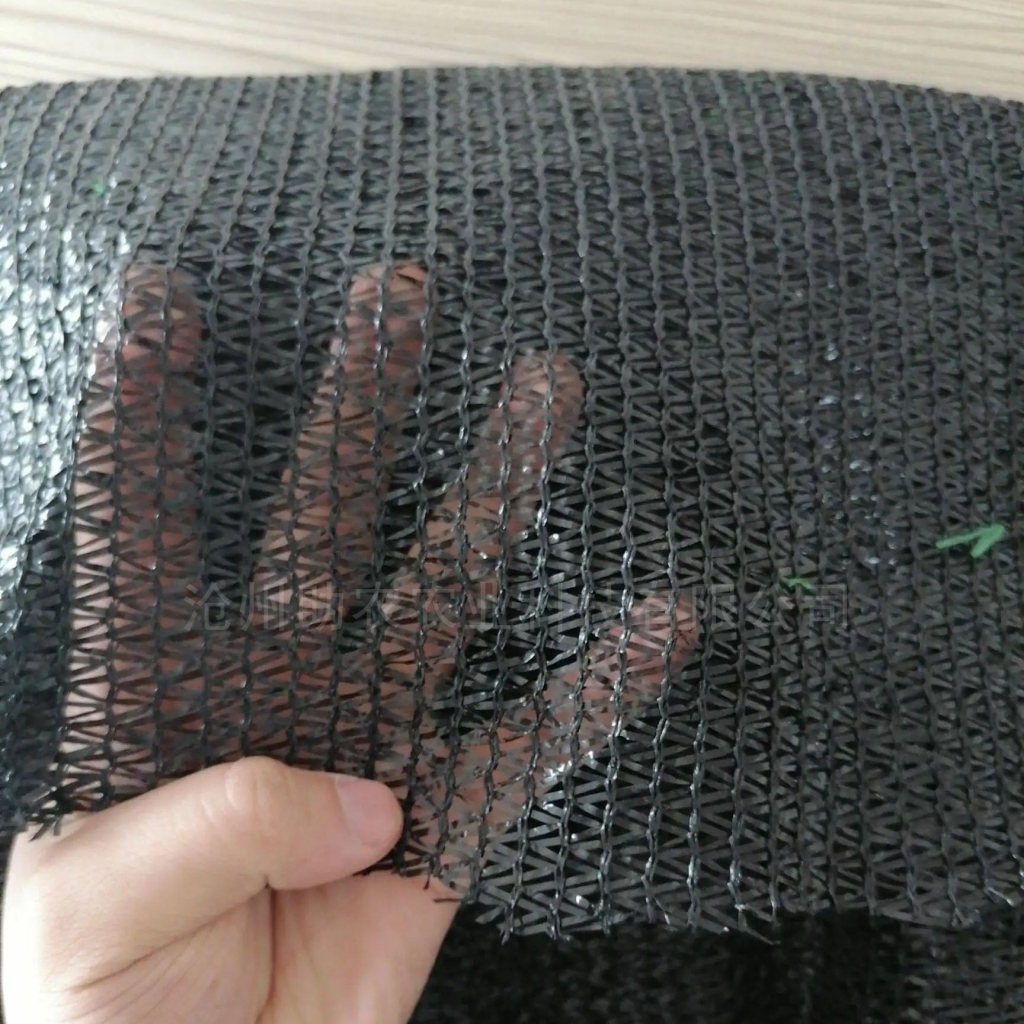

④ Optional Shading System for Heat and Light Control
● Available shading levels: 50% / 65% / 75% / 99%
● Lowers internal temperature by 6–10°C during hot seasons
● Prevents sunburn on crops like lettuce, strawberries, leafy greens, and herbs
● Optional top-mounted or side-roll designs
● Manual or electric operation options
● UV-resistant, durable, and foldable—ideal for seasonal use

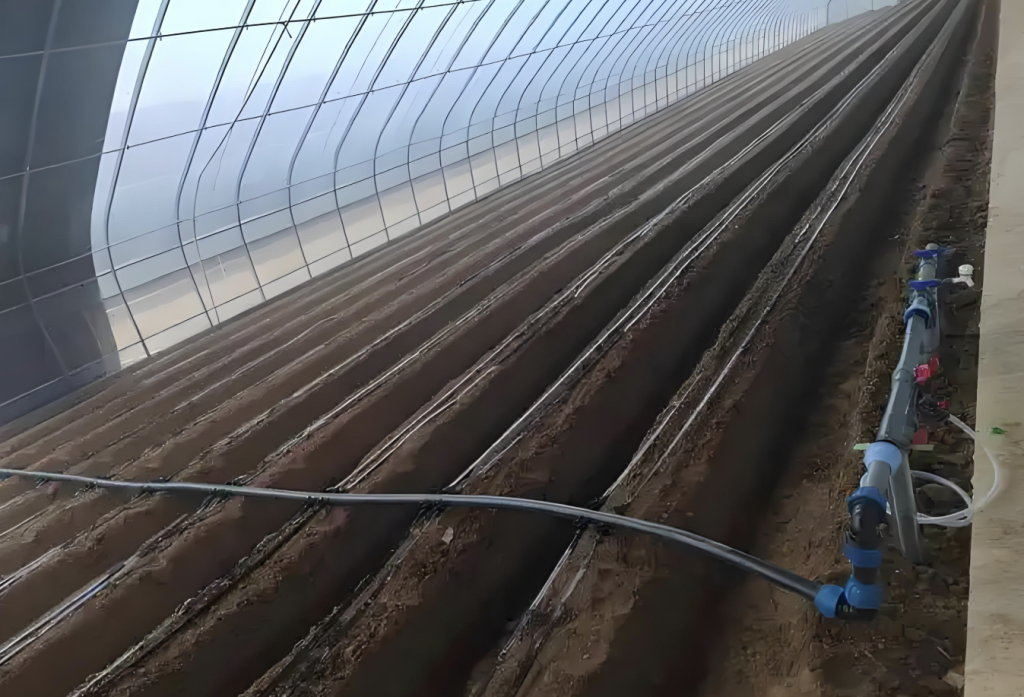

⑤ Drip Irrigation System
● Includes emitters, main tubing, filters, pressure regulators, and timers
● Enables precise watering and fertilization
● Compatible with both soil-based and soilless cultivation
| Challenges | Solutions | ||||||
| Difficult installation |
Ground-inserted legs — no concrete needed | ||||||
| Pest infestation | Side roll-up insect netting | ||||||
| Weak wind/snow resistance |
Wind resistance up to 90 km/h + sturdy frame |
||||||
| Overheating in summer |
Side ventilation and optional shading nets | ||||||
| Labor-intensive manual watering |
Optional drip irrigation system | ||||||
● Delivery time: 7–15 working days, depending on order quantity
● Support: Installation guides and videos provided
Q1: Is this ground-inserted tunnel suitable for windy open areas?
A1: Yes. The structure uses hot-dip galvanized steel tubing with a ground-inserted design, reinforced with anchor bolts if needed. It remains stable and reliable even under strong wind conditions.
Q2: Can I purchase just the frame and use my own plastic film?
A2: Absolutely. We can supply the steel frame alone or provide different types of film based on your requirements.
Q3: Is the ground-inserted installation stable enough? Will it collapse during heavy rain?
A3: The ground-inserted legs penetrate deeply into the soil, and optional ground anchors are available to enhance stability. When installed correctly, it remains sturdy and secure even during heavy rain.
Q4: Is this greenhouse suitable for growing tomatoes or peppers?
A4: Yes, it’s ideal for fruiting vegetables like tomatoes, peppers, and cucumbers. It’s also great for leafy greens, seedlings, and herbs.
Q5: Do you offer a warranty? What if parts get damaged during shipping?
A5: All products are inspected and securely packaged before shipment. If any damage occurs, please provide photos and contact us. We will arrange free replacement of damaged parts.
