Material: Tempered Glass + Galvanized Steel
Dimensions: Customizable
| Item | Details | ||||||
| Structure Type | Glass Greenhouse | ||||||
| Covering Material | 4–5mm Single Layer / 6–8mm Double-layer Tempered Glass | ||||||
| Structural Material | Hot-dip Galvanized Steel Plate | ||||||
| Wind Load Capacity | ≥ 120 km/h | ||||||
| Snow Load Capacity | 0.4–0.6 kN/m² | ||||||
| Span Width | 8 m / 9.6 m / 12 m | ||||||
| Ridge Height | 4.5 m – 6.5 m | ||||||
| Service Life | ≥ 20 years | ||||||
| Drainage System | Integrated PVC Drainage Ditch | ||||||
| Optional Systems | Shading, Heating, Hydroponics, Irrigation, Lighting | ||||||
① High-Transparency Glass
● Made from 4mm / 5mm single-layer tempered glass or 5+6A+5mm double-layer insulated glass
● Light transmittance >90% for enhanced photosynthesis
● Excellent UV resistance, long service life, and an attractive appearance

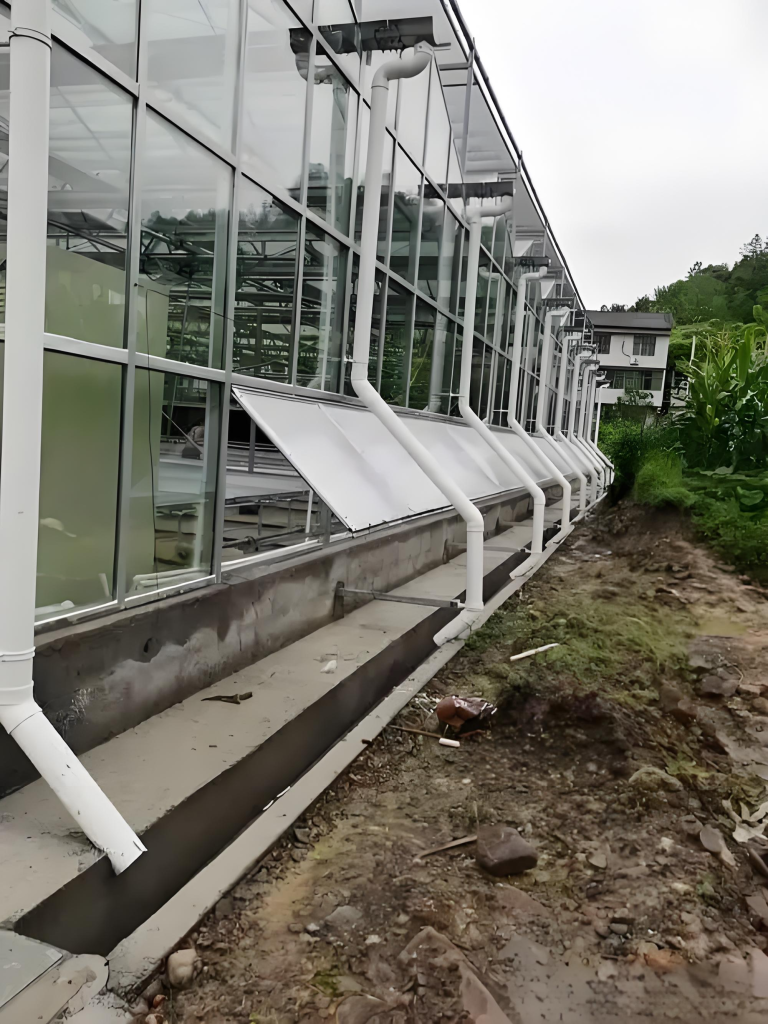

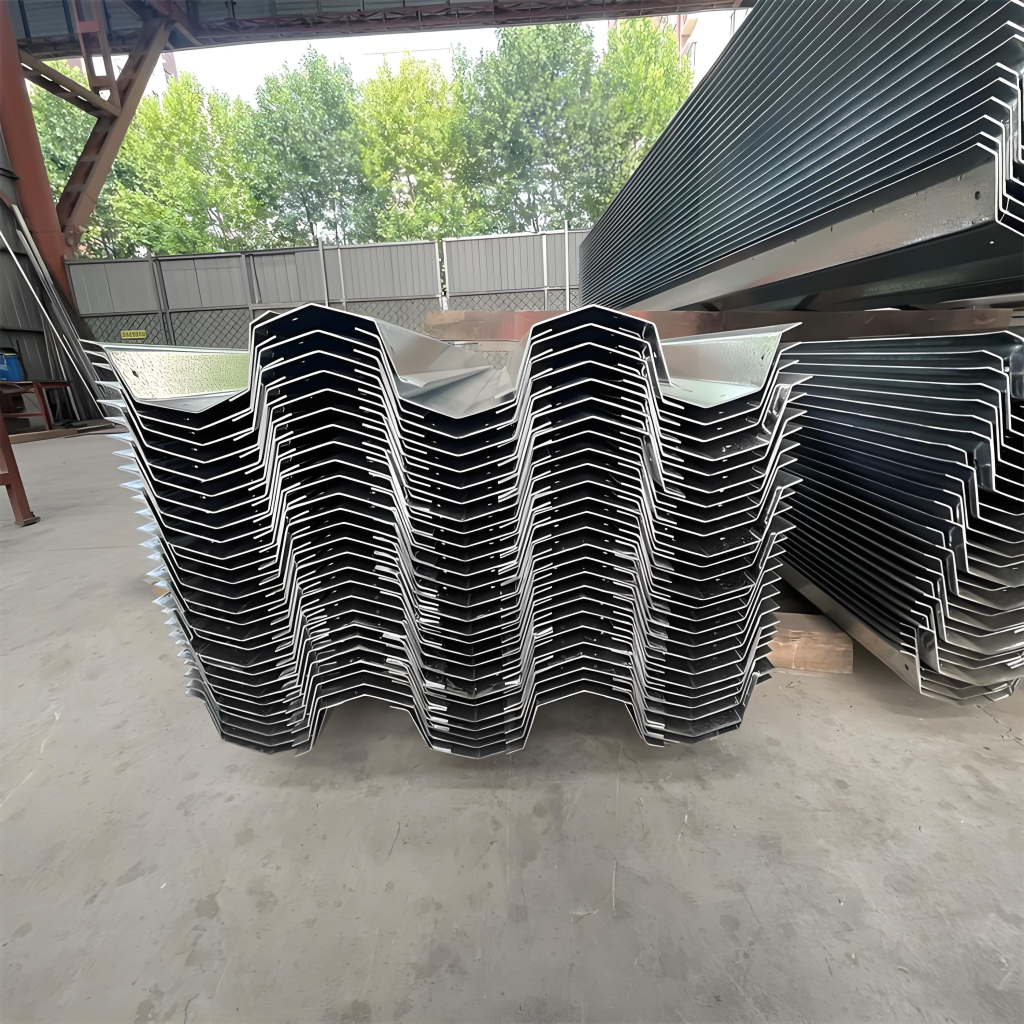

② High-Quality Gutter System
● Integrated design for efficient water drainage
● Smooth surface prevents clogging and algae buildup
● High load-bearing capacity to withstand snow and insulation blanket weight
③ Optional Ventilation System
● Manual or electric window opening available
● Provides natural ventilation to regulate humidity and temperature
● Equipped with insect nets to prevent pests from entering
● Rainproof structure available for areas with frequent rainfall

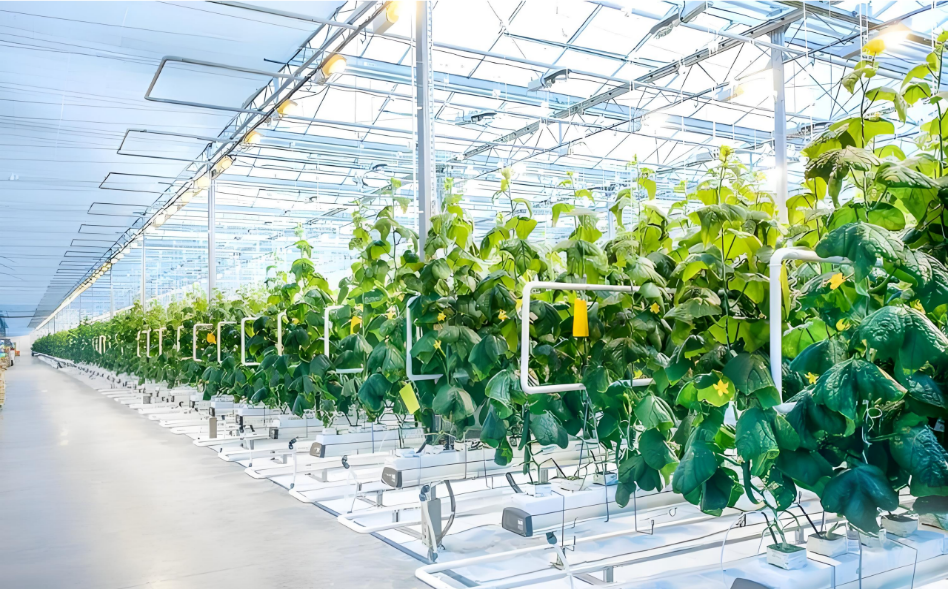

④ Optional Smart Growing System
●Supports vertical hydroponics, NFT systems, and ebb-and-flow tables
●Maximizes space utilization, ideal for leafy greens, herbs, and strawberries
●Optional integration of automated lighting, irrigation, and fertilization
| Challenge | Our Solution | ||||||
| Low winter temperatures |
Double-layer insulation with hot water heating for effective warmth retention |
||||||
| Labor-intensive management |
Smart automation systems to reduce manual labor and errors |
||||||
| Humidity and fungal issues |
Roof vents with fans and sensors for optimal climate control |
||||||
| Crop shading and overheating |
External shading nets to lower light intensity and temperature |
||||||
| Uneven irrigation |
Automatic irrigation system with humidity sensors |
||||||
| Pest intrusion | Integrated insect netting and climate-sealed environment |
||||||
●Packaging: Steel frame bundling, with glass panels packed in reinforced wooden crates
●Delivery Time: 15–25 working days, depending on order size
●Support: On-site installation guidance or remote video assistance
Q1: Is tempered glass safe to install?
A1: Yes. Tempered glass is 4–5 times stronger than regular glass, and if it breaks, it shatters into small, harmless granules.
Q2: Can I install solar panels on the roof?
A2: Yes. We offer customizable designs that allow solar modules to be integrated into uncovered or roof structures.
Q3: Is the smart control system included?
A3: It’s optional. We provide smart controllers for temperature, humidity, CO₂, lighting, and fertigation—available as a fully integrated or modular system.
Q4: What if I need a custom size?
A4: Absolutely. We design according to your land layout and specific growing requirements.
Q5: How long will the greenhouse last?
A5: With proper maintenance, the frame can last over 20 years, and glass panels can be replaced when needed.
